Interior 2 Antenna

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the console rear complete assembly.

    Refer to CONSOLE REAR COMPLETE ASSEMBLY .

  3. Remove the interior 2 antenna (B) after loosening the mounting nuts (2EA) and disconnecting the connector(A).

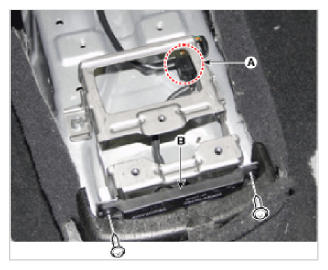

    Fig 1: Identifying Interior 2 Antenna, Connector And Mounting Nuts
    G09366096Courtesy of HYUNDAI MOTOR AMERICA
