Interior 1 Antenna

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Take care not to scratch the crash pad and related parts.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center panel.

    Refer to CRASH PAD CENTER PANEL

  3. Remove the interior 1 antenna (B) after loosening the mounting nuts (2EA) and disconnecting the connector(A).

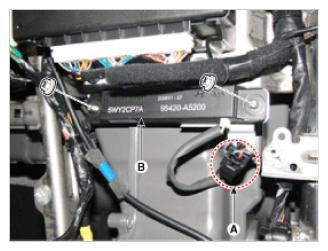

    Fig 1: Identifying Interior 1 Antenna, Connector And Mounting Nuts
    G09366095Courtesy of HYUNDAI MOTOR AMERICA
