Repair Procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the steering wheel.
(Refer to STEERING WHEEL .

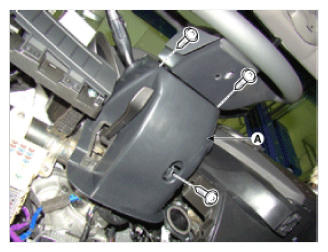

Remove the steering column upper and lower shrouds (A) after removing 3 screws.

Fig 1: Identifying Steering Column Upper/Lower Shrouds And Screws
Courtesy of HYUNDAI MOTOR AMERICA

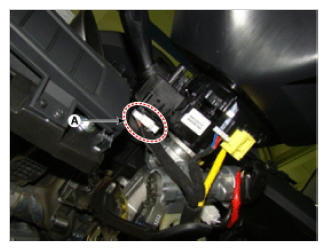

Disconnect the light switch connector (A) and the wiper switch connector (B).

Fig 2: Identifying Light Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA

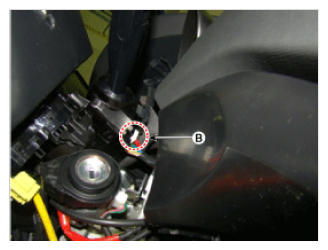

Fig 3: Identifying Wiper Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA

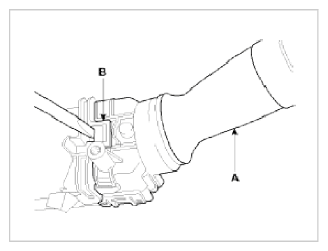

Remove the wiper switch (A) by pushing the lock pin (B).
NOTE: When removing the wiper & washer switch only, release the lock of wiper switch without removing the steering wheel.

Fig 4: Removing Wiper Switch Using Tool
Courtesy of HYUNDAI MOTOR AMERICA
Remove the clock spring.
(Refer to "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

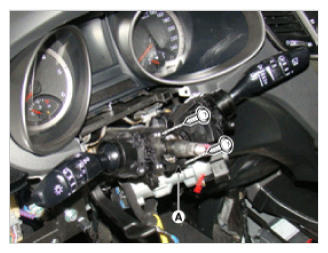

Loosen the screws (2EA) from the multifunction switch assembly (A).

Fig 5: Identifying Multifunction Switch Assembly And Screws
Courtesy of HYUNDAI MOTOR AMERICA
