Repair Procedures: Inspection
WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

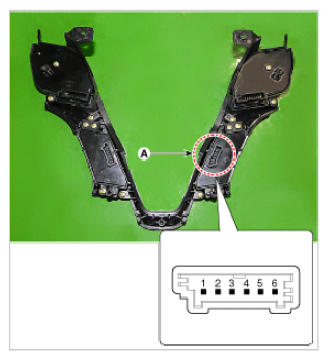

- Check for resistance between terminals in each switch position.HANDS FREE SWITCH SPECIFICATIONS (BLUETOOTH)
Switch Connector terminal Resistance (± 5%) End 2-5 12.1 kΩ Send 2-5 34.1 kΩ HANDS FREE SWITCH SPECIFICATIONS (BLUETOOTH + VOICE)Switch Connector terminal Resistance (± 5%) Voice 2-5 3.9 kΩ End 2-5 12.1 kΩ Send 2-5 34.1 kΩ
