Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the mounting screws (2EA).

    And then remove the overhead console (A).

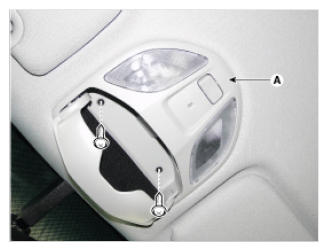

    Fig 1: Identifying Overhead Console And Screws
    G09366503Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the overhead console after disconnect the connector (A).

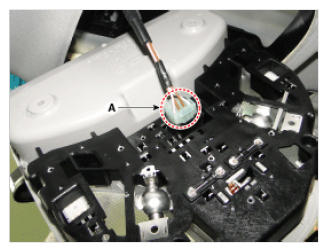

    Fig 2: Identifying Overhead Console Connector
    G09366504Courtesy of HYUNDAI MOTOR AMERICA
  4. If it is necessary to replace the bulb, replace the bulb after removing the lens (A).

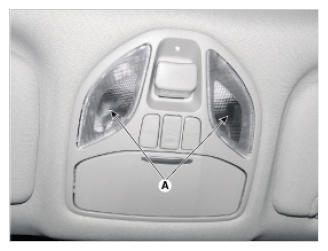

Fig 3: Identifying Bulb And Lens
G09366505Courtesy of HYUNDAI MOTOR AMERICA
