Console Rear Complete Assembly: A/T

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

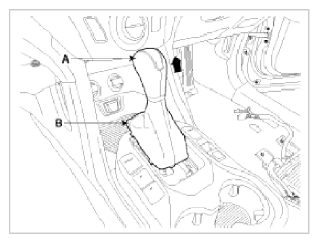

Remove the gear boots (B) and gear knob (A).

Fig 1: Removing Gear Boots And Gear Knob
Courtesy of HYUNDAI MOTOR AMERICA

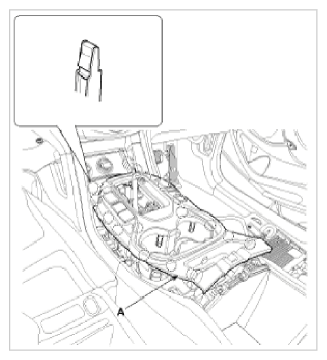

Using a screwdriver or remover, remove the console upper cover (A).

Fig 2: Removing Console Upper Cover Using Screwdriver
Courtesy of HYUNDAI MOTOR AMERICA

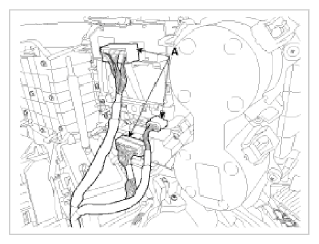

Disconnect the connectors (A).

Fig 3: Identifying Connectors
Courtesy of HYUNDAI MOTOR AMERICA

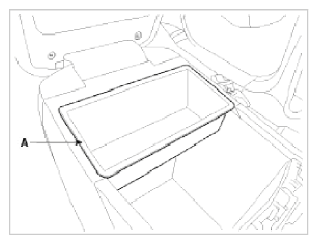

Remove the console armrest tray (A).

Fig 4: Identifying Console Armrest Tray
Courtesy of HYUNDAI MOTOR AMERICA

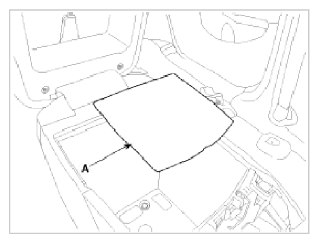

Remove the console tray mat (A).

Fig 5: Identifying Console Tray Mat
Courtesy of HYUNDAI MOTOR AMERICA

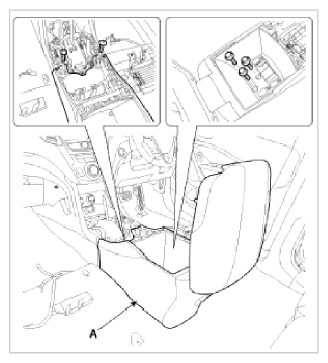

After loosening the mounting screws and bolts, then remove the console rear complete assembly (A).

Fig 6: Identifying Console Rear Complete Assembly, Mounting Screws And Bolts
Courtesy of HYUNDAI MOTOR AMERICA

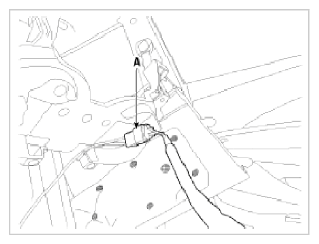

Disconnect the power outlet connector (A).

Fig 7: Identifying Power Outlet Connector
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips.
