Console Front Complete Assembly: A/T

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the console rear complete assembly.
(Refer to FLOOR CONSOLE ASSEMBLY .

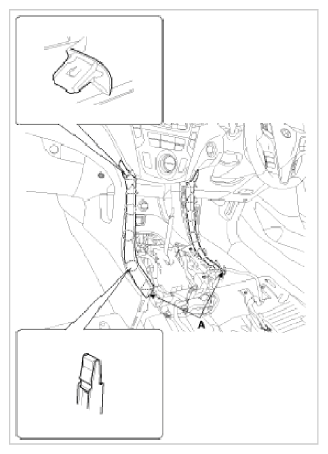

Using a screwdriver or remover, remove the front console garnish (A).

Fig 1: Removing Front Console Garnish Using Screwdriver
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the console side cover (A).

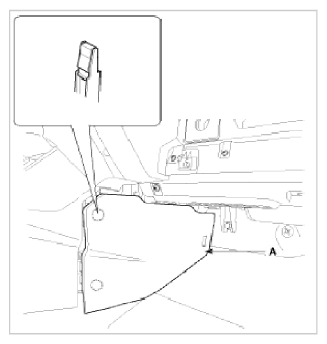

[LH]

Fig 2: Identifying LH Console Side Cover Using Screwdriver
Courtesy of HYUNDAI MOTOR AMERICA

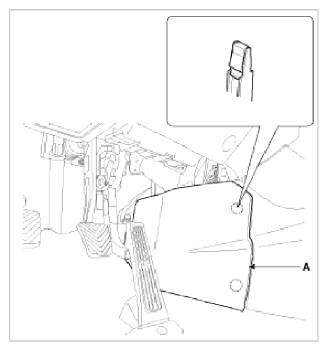

[RH]

Fig 3: Identifying RH Console Side Cover Using Screwdriver
Courtesy of HYUNDAI MOTOR AMERICA

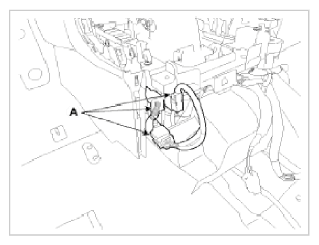

Disconnect the connectors (A).

Fig 4: Identifying Connectors
Courtesy of HYUNDAI MOTOR AMERICA

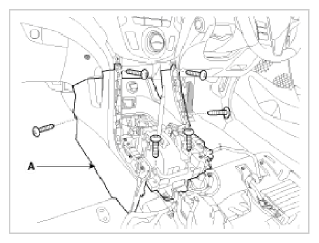

After loosening the mounting screws, then remove the console front complete assembly (A).

Fig 5: Identifying Console Front Complete Assembly And Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips.
