Repair Procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

Information

Take care to not let the tailgate fall on you as the lifts are removed. Have a helper hold the tailgate open, or use a secure method to hold it open.

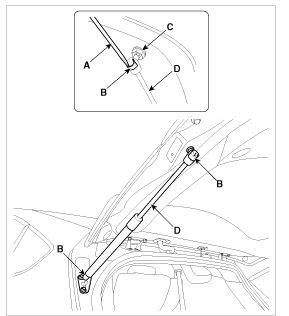

Using a screwdriver (A), lift up slightly the socket clips (B) of both ends on the lifter (D), and then remove the lifter from the bracket (C).

Fig 1: Lifting Socket Clips Using Screwdriver
Courtesy of HYUNDAI MOTOR AMERICA
Push the socket of the lifter into the bracket for installation.
Information
- Make sure the tail gate locks and opens properly and locks securely.
