Repair Procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to scratch the body surface.

Remove the tail gate trim.
Refer to TAIL GATE TRIM .

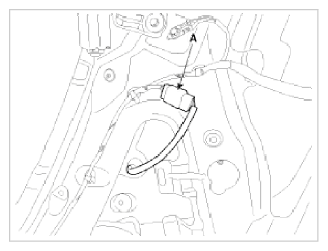

Disconnect the license lamp connector and back view camera connector (A).

Fig 1: Identifying Back View Camera Connector
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the tail gate back panel mounting nuts (A).
[Side]

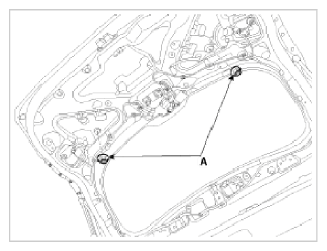

Fig 2: Identifying Tail Gate Back Panel Mounting Nuts (Side)
Courtesy of HYUNDAI MOTOR AMERICA

[Center]

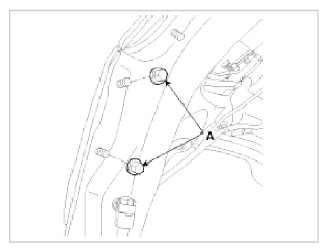

Fig 3: Identifying Tail Gate Back Panel Mounting Nuts (Center)
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the tail gate back panel (A).

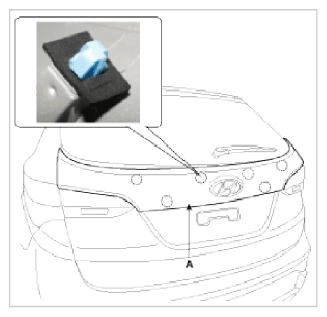

Fig 4: Identifying Tail Gate Back Panel
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the connector is plugged in properly.
- Replace any damaged clips.
