Repair Procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to protect your hands.

Information

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

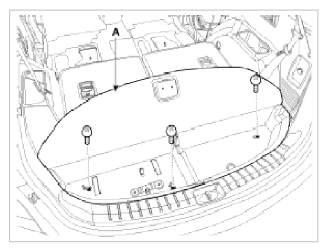

After loosening the mounting screws, then remove the luggage floor box (A).

Fig 1: Identifying Luggage Floor Box
Courtesy of HYUNDAI MOTOR AMERICA

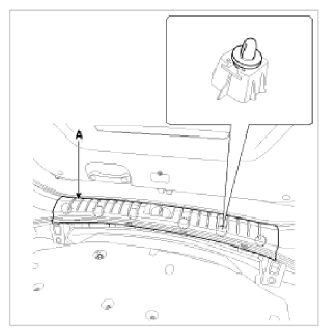

Using a screwdriver or remover, remove the rear transverse trim (A).

Fig 2: Identifying Rear Transverse Trim
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Replace any damaged clips.
