Repair Procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door window glass.
Refer to FRONT DOOR WINDOW GLASS .
Remove the front door outside handle.
Refer to FRONT DOOR OUTSIDE HANDLE .

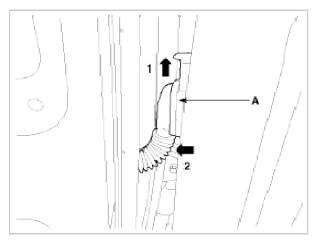

Disconnect the front door main connector (A).

Fig 1: Disconnecting Front Door Main Connector
Courtesy of HYUNDAI MOTOR AMERICA

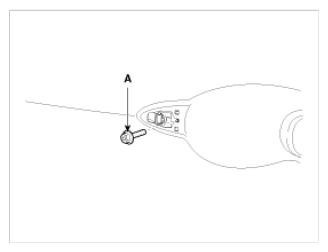

Loosen the front door outside handle base mounting bolt (A).

Fig 2: Identifying Front Door Outside Handle Base Mounting Bolt
Courtesy of HYUNDAI MOTOR AMERICA

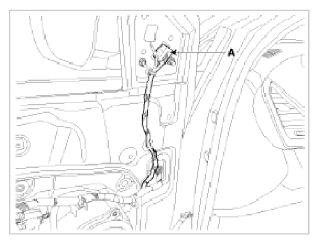

Disconnect the outside rear view mirror connector (A).

Fig 3: Identifying Outside Rear View Mirror Connector
Courtesy of HYUNDAI MOTOR AMERICA

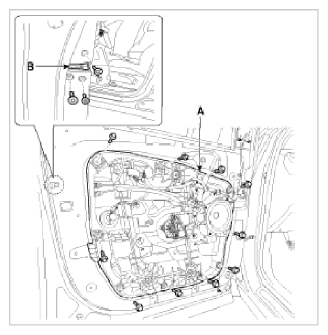

Loosen the front door latch (B) mounting screws.
After loosening the mounting bolts, then remove the front door module (A).
Tightening torque:

Bolt: 7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

Screw: 7.8 ~ 10.8 N.m (0.8 ~ 1.1 kgf.m, 5.8 ~ 8.0 lb-ft)

Fig 4: Identifying Front Door Module And Latch Mounting Bolts And Screws
Courtesy of HYUNDAI MOTOR AMERICA

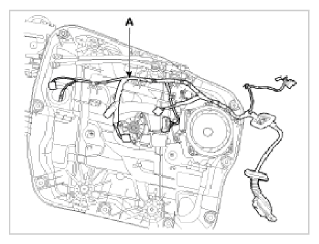

Disconnect the connectors and front door module wiring harness (A).

Fig 5: Identifying Front Door Module Wiring Harness
Courtesy of HYUNDAI MOTOR AMERICA

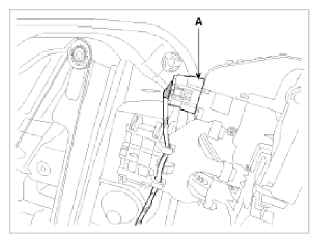

Disconnect the front door latch connector (A).

Fig 6: Removing Front Door Latch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- The area of whole parts should be applied with sufficient grease.
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure the door locks/unlocks and opens/closes properly.
