Repair Procedures: Installation

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Wrap tape around the driveshaft spline (TJ) to prevent damage to the boot.
  2. Using the alignment marks (D) made during disassembly as a guide, install the spider assembly (A) and retainer ring (B) on the driveshaft splines (C).

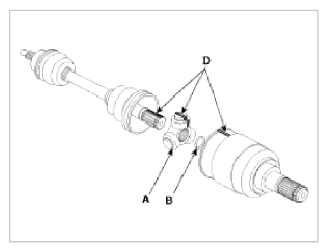

    Fig 1: Identifying Alignment Marks On Spider Assembly, Retainer Ring And Driveshaft Splines
    G09367920Courtesy of HYUNDAI MOTOR AMERICA

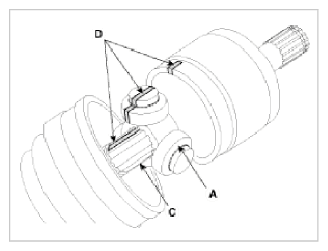

    Fig 2: Identifying Alignment Marks On Spider Assembly, Retainer Ring And Driveshaft Splines
    G09367921Courtesy of HYUNDAI MOTOR AMERICA
  3. Add specified grease to the joint boot as much as it was wiped away at inspection.
  4. Install the both boot band.
  5. Using the SST (09495-3K000), secure the TJ boot bands.

    Clearance (A):  2.0 mm (0.0787 in.) or less

    Fig 3: Securing TJ Boot Bands Using Tool
    G09367922Courtesy of HYUNDAI MOTOR AMERICA
  6. Install the front driveshaft.

    Refer to FRONT DRIVESHAFT .

  7. Check the front alignment.

    Refer to FRONT ALIGNMENT .
