Components and Components Location: Components: LH

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

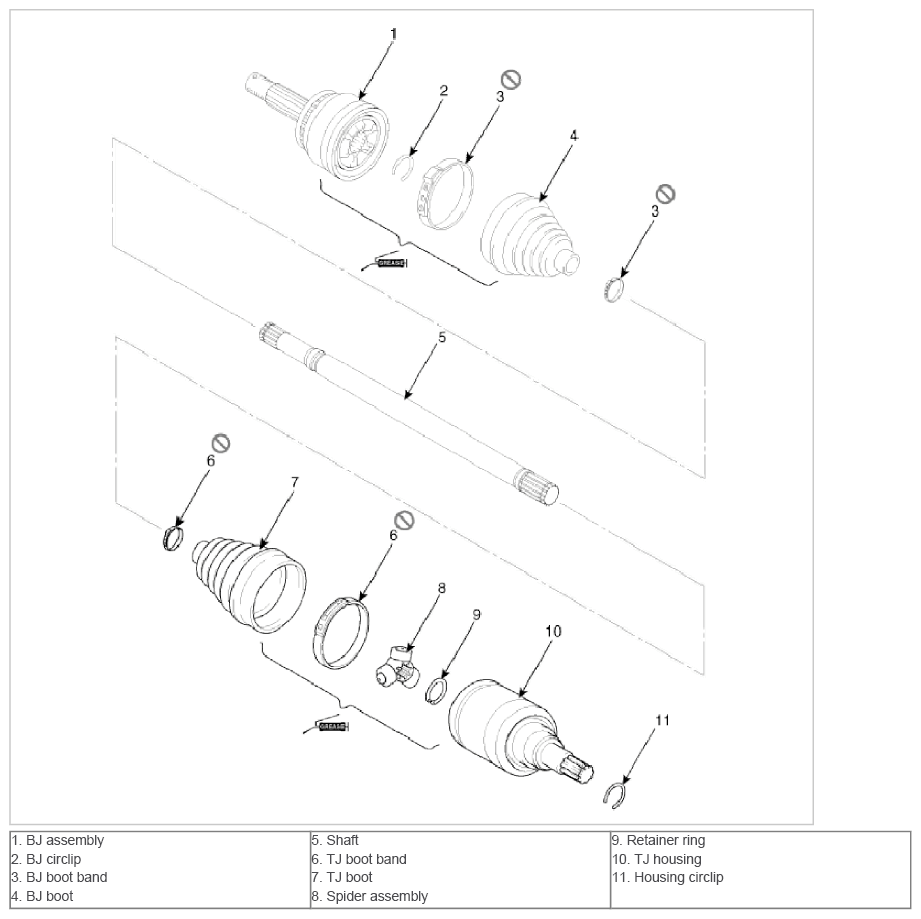

Fig 1: TJ Joint Components Location (LH)
G09367910Courtesy of HYUNDAI MOTOR AMERICA
