Repair Procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front driveshaft.

    Refer to FRONT DRIVESHAFT .

  2. Remove the TJ joint assembly.

    Refer to TJ JOINT .

  3. Remove the remove the both side of band (B) of the dynamic damper (A).

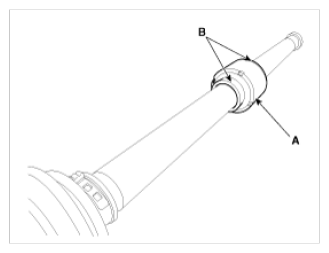

    Fig 1: Identifying Dynamic Damper And Band
    G09367924Courtesy of HYUNDAI MOTOR AMERICA
  4. Fix the driveshaft (A) with a vice (B) as illustrated.

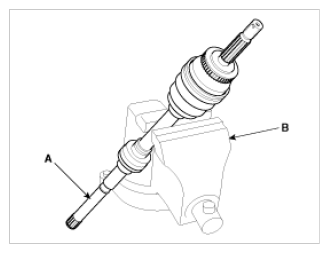

    Fig 2: Fixing Driveshaft Using Vice
    G09367925Courtesy of HYUNDAI MOTOR AMERICA
  5. Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper when the dynamic damper is removed.
  6. Separate the dynamic damper (A) from the shaft (B) carefully.

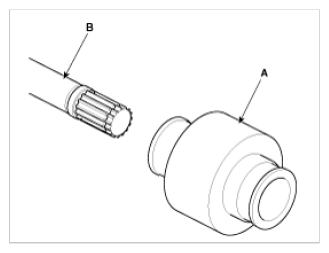

    Fig 3: Identifying Dynamic Damper And Shaft
    G09367926Courtesy of HYUNDAI MOTOR AMERICA
