Repair Procedures: Installation

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper.
  2. Install the dynamic damper.
  3. Install the dynamic damper band (A).
  4. Using the SST (09495-3K000), secure the TJ boot bands (B).

    Clearance (A):  2.0 mm (0.0787 in.) or less

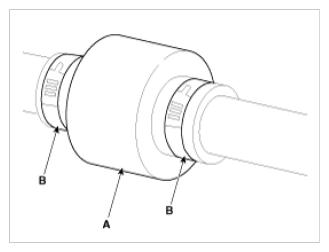

    Fig 1: Identifying Dynamic Damper Band And TJ Boot Bands
    G09367927Courtesy of HYUNDAI MOTOR AMERICA
  5. Install the TJ joint assembly.

    Refer to TJ JOINT .

  6. Install the front driveshaft.

    Refer to FRONT DRIVESHAFT .

  7. Check the front alignment.

    Refer to FRONT ALIGNMENT .
