Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cylinder head cover.
Refer to CYLINDER HEAD COVER .

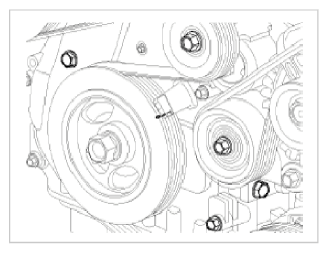

Turn the crankshaft pulley and align its groove with the timing mark of the timing chain cover to set the piston of No. 1 cylinder to the top dead center on compression stroke.

Fig 1: Identifying Timing Mark Of Timing Chain Cover
Courtesy of HYUNDAI MOTOR AMERICA
Remove the timing chain cover.
Refer to TIMING CHAIN COVER .

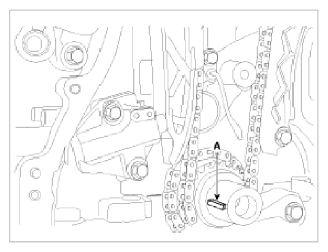

Make sure that the key (A) of crankshaft is aligned with the mating surface of main bearing cap. As a result of this, the piston of No. 1 cylinder placed at the top dead center on compression stroke.

Fig 2: Identifying Crankshaft Key
Courtesy of HYUNDAI MOTOR AMERICA

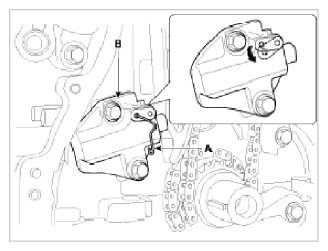

Release the ratchet by pulling the link down using a thin rod. Compress the piston and then insert a stopper pin (A) into the hole on the ratchet hold the compressed piston. Remove the timing chain tensioner (B).

Fig 3: Pulling Link Down
Courtesy of HYUNDAI MOTOR AMERICA

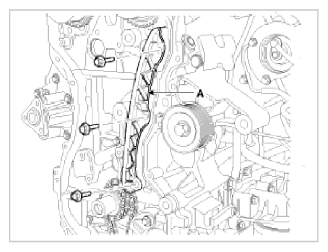

Remove the timing chain tensioner arm (A).

Fig 4: Identifying Timing Chain Tensioner Arm
Courtesy of HYUNDAI MOTOR AMERICA

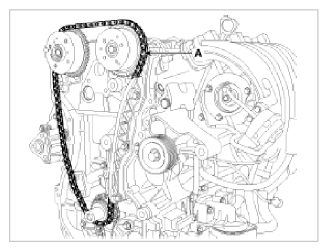

Remove the timing chain (A).

Fig 5: Identifying Timing Chain
Courtesy of HYUNDAI MOTOR AMERICA

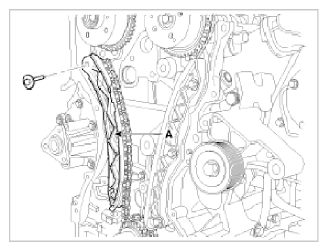

Remove the timing chain guide (A).

Fig 6: Identifying Timing Chain Guide
Courtesy of HYUNDAI MOTOR AMERICA

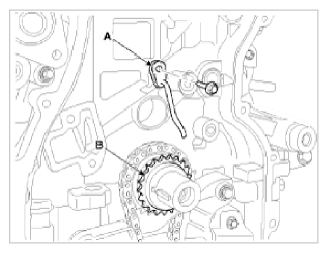

Remove the timing chain oil jet (A) and the crankshaft chain sprocket (B).

Fig 7: Identifying Crankshaft Chain Sprocket And Timing Chain Oil Jet
Courtesy of HYUNDAI MOTOR AMERICA
Remove the balance shaft chain.
Refer to BALANCE SHAFT & OIL PUMP .
