Repair procedures: Inspection

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Visually check the belt for excessive wear, frayed cords etc.

    If any defect has been found, replace the drive belt.

    NOTE: Cracks on the rib side of a belt are considered acceptable. If the belt has chunks missing from the ribs, it should be replaced.

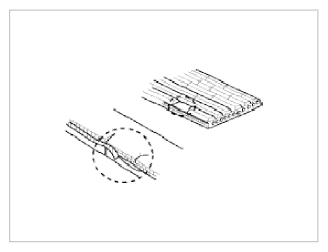

    Fig 1: Identifying Cracks And Damages On Belt
    G09364527Courtesy of HYUNDAI MOTOR AMERICA
