[Fuel sender]

  1. Using an ohmmeter, measure the resistance between terminals 1 and 3 of sender connector (A) at each float level.

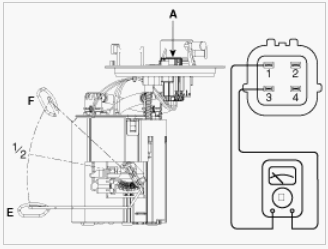

    Fig 1: Measuring Resistance Between Terminals Sender Connector
    G08804526Courtesy of HYUNDAI MOTOR AMERICA
    Pin No. description
    1 Fuel sender signal
    2 Fuel pump (+)
    3 Fuel sender ground
    4 Fuel pump (-)
  2. Also check that the resistance changes smoothly when the float is moved from "E" to "F".
    Position Resistance (Ω) Capacity (l  )
    E 197 ~ 203 2.8
    1/2 64.2 ~ 68.2 22.3
    F 6 ~ 10 41.8
