Schematic Diagrams

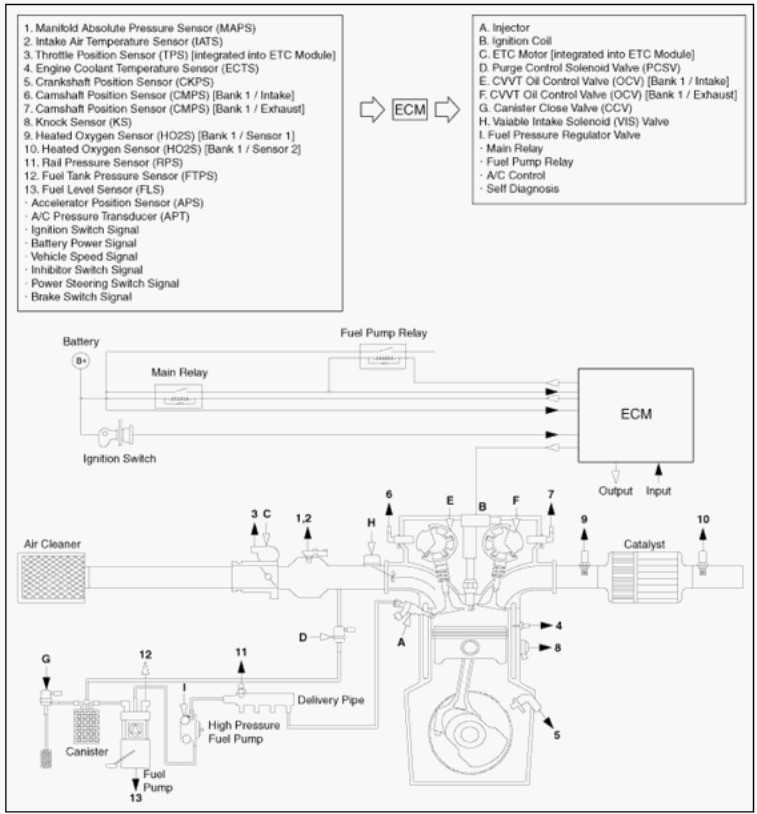

Fig 1: Emission Control System Schematic

G08804308

Courtesy of HYUNDAI MOTOR AMERICA
