Signal Waveform

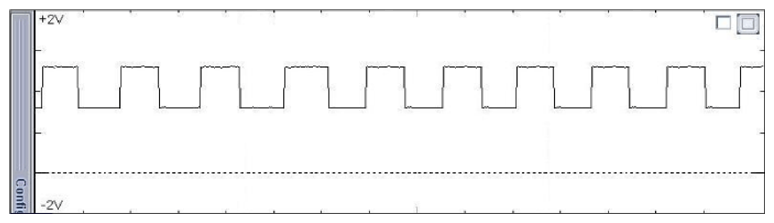

Fig 1: Display - Wheel Speed Sensor Signal Waveform

G08804959

Courtesy of HYUNDAI MOTOR AMERICA

Normal waveform of wheel speed sensor with low speed condition
