Phone Setup

All Bluetooth® related operations can be performed in PHONE menu.

1. Push the "SETUP" button to enter SETUP mode.
2. Rotate the "TUNE" knob to move the cursor between items and push the "ENTER" button to select "Phone"

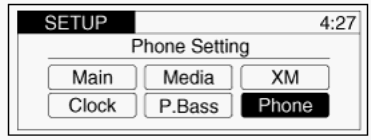

   Fig 1: Display - Phone Setting Screen

   Courtesy of HYUNDAI MOTOR AMERICA
3. Rotate the "TUNE" knob to move the cursor between items and push the "ENTER" button to select a desired item.

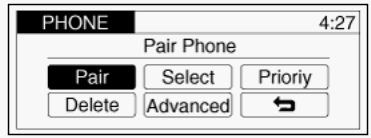

   Fig 2: Display - Pair Phone Screen

   Courtesy of HYUNDAI MOTOR AMERICA
   • Pairing a phone

     Before using Bluetooth® features, the phone must be paired with the audio system. Up to 5 phones can be paired with the system.

     NOTE:

     • The pairing procedure of the phone varies according to each phone model. Before attempting to pair phone, please see your phone's User's Guide for instructions.
     • Once pairing with the phone is completed, there is no need to pair with that phone again unless the phone is deleted manually from the audio system (refer to  1or the vehicle's information is removed from the phone.

1. Press "SETUP" button to enter SETUP mode.
2. Select "Phone", then "Pair" in PHONE menu.
3. The audio displays "Device: [ACCENT] Passkey: 0000"
4. Search and select the device name in your mobile phone to start the pairing process.

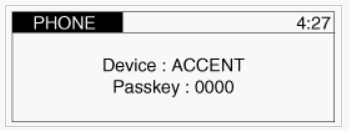

   Fig 3: Display - Phone Screen (Device: ACCENT)

   Courtesy of HYUNDAI MOTOR AMERICA
   NOTE:

   • If the phone is paired with two or more vehicles of the same model, some phones may not handle Bluetooth® devices of that name correctly. In this case, you may need to change the name displayed on your phone.

     For example, if the vehicles' name is HMC CAR, you may need to change the name displayed on you phone from HMC_CAR to JOHNS_CAR or HMC CAR_1 to avoid ambiguity.

     Refer to your phone User's Guide, or contact your cellular carrier or phone manufacturer for instructions.

   • Connecting a phone

     When the Bluetooth® system is enabled, the phone previously used is automatically selected and re-connected. If you want to select different phone previously paired, the phone can be selected through "Select Phone" menu. Only a selected phone can be used with the hands-free system at a time.

1. Press "SETUP" button to enter SETUP mode.
2. Select "Phone", then "Select" in PHONE menu.

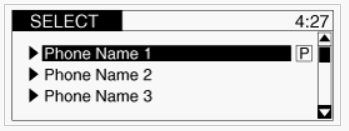

   Fig 4: Display - Phone Name Screen

   Courtesy of HYUNDAI MOTOR AMERICA
3. Select desired phone name from the list shown.
4. The Bluetooth® icon appears on the upper side of audio display when a phone is connected.

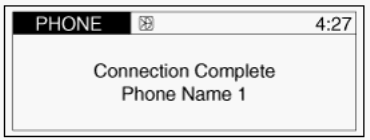

   Fig 5: Display - Phone Connected

   Courtesy of HYUNDAI MOTOR AMERICA
   • Changing Priority

     If several phones are paired with the audio system, the system attempts to connect in the following order when the Bluetooth® system is enabled:

1. "Priority" checked phone.
2. Previously connected phone
3. Selecting priority.

1. Press "SETUP" button to enter SETUP mode.
2. Select "Phone", then "Priority" in PHONE menu.
3. Select desired phone name from the list shown.

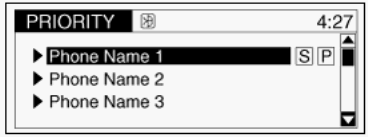

   Fig 6: Display - Phone Name Screen (Priority)

   Courtesy of HYUNDAI MOTOR AMERICA
   • Deleting a Phone

     The paired phone can be deleted.

     • When the phone is deleted, all the information associated with that phone is also deleted (including phonebook).
     • If you want to use the deleted phone with the audio system again, pairing procedure must be completed once more.

1. Press "SETUP" button to enter SETUP mode.
2. Select "Phone", then "Delete" in PHONE menu.
3. Select desired phone name from the list shown.

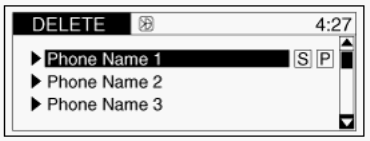

   Fig 7: Display - Phone Name Screen (Delete)

   Courtesy of HYUNDAI MOTOR AMERICA
   • Advanced Settings

     After pressing the "SETUP" button, select "Phone" menu. while in PHONE menu, select the "Advanced" menu to make Bluetooth® Phone settings.

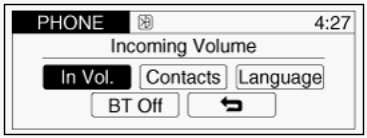

     Fig 8: Display - Phone Advanced Settings

     Courtesy of HYUNDAI MOTOR AMERICA
