SRS Control Module Connector End View (M12)

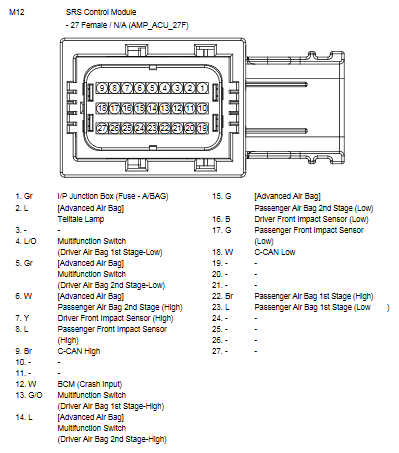

Fig 1: SRS Control Module Connector End View (M12)

G10774377

Courtesy of HYUNDAI MOTOR AMERICA
