EPS Control Module Connector End View (EGG71)

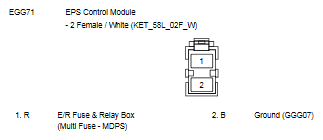

Fig 1: EPS Control Module Connector End View (EGG71)

G10774471

Courtesy of HYUNDAI MOTOR AMERICA
