WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

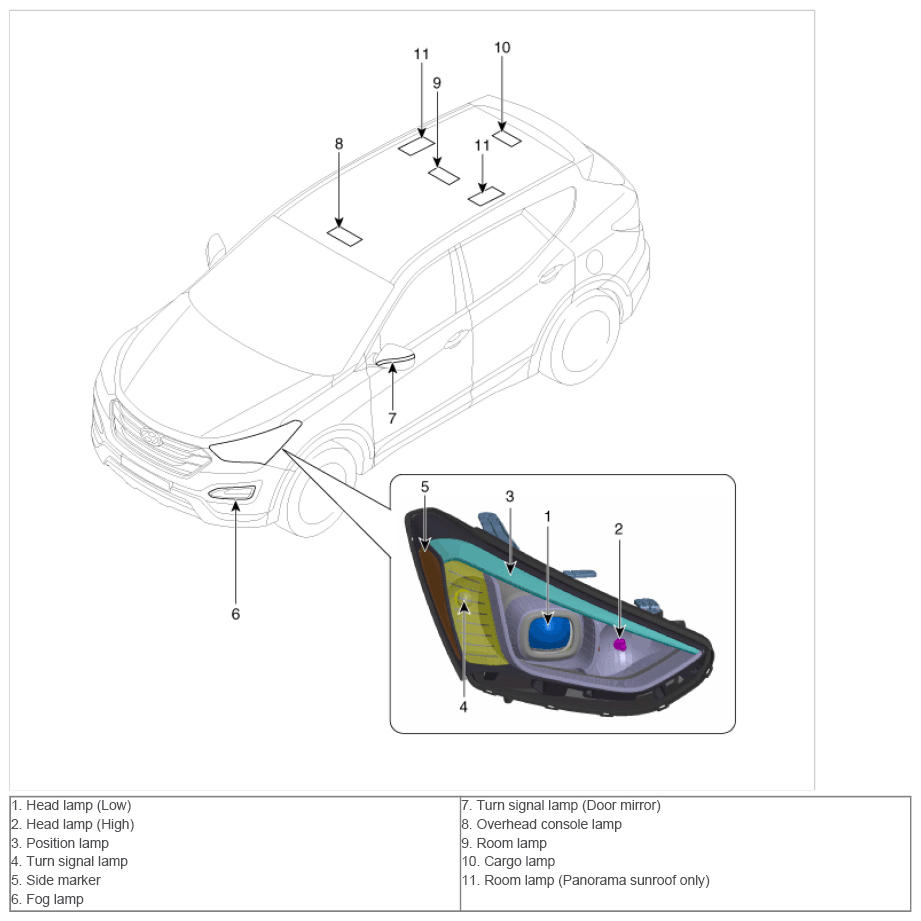

Fig 1: Identifying Head Lamp, Position Lamp, Turn Signal Lamp, Side Marker, Fog Lamp, Room And Cargo Lamp
Courtesy of HYUNDAI MOTOR AMERICA

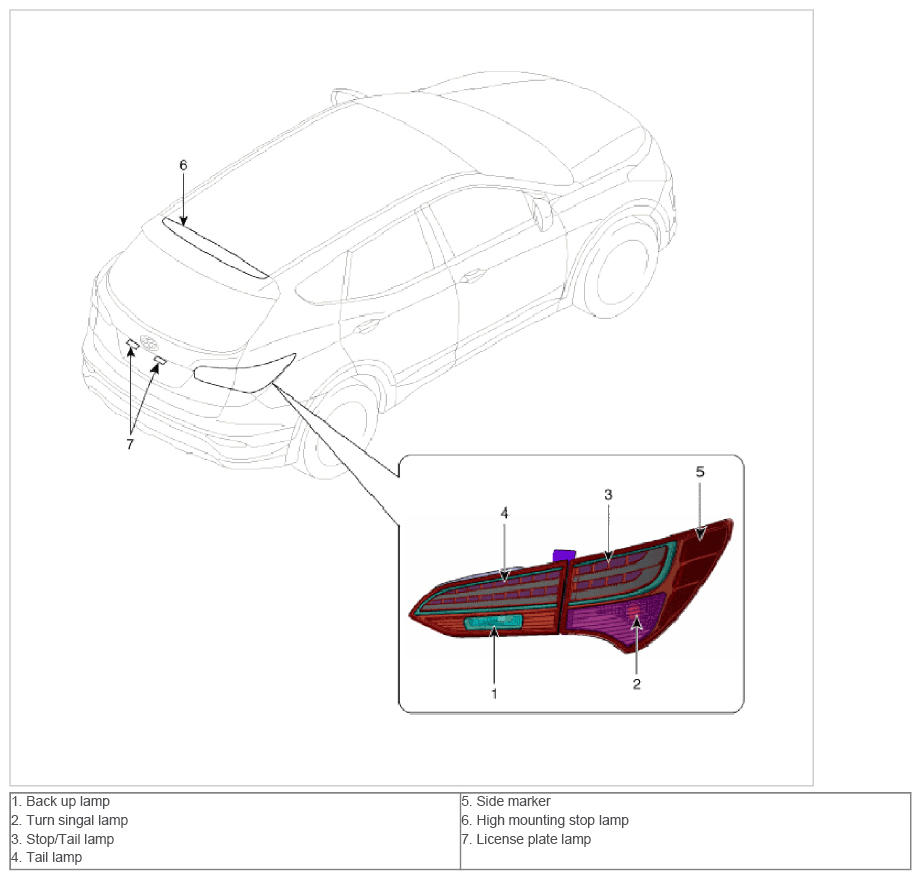

Fig 2: Identifying High Mounting Stop Lamp, License Plate Lamp And Tail Lamp Related Components
