Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the driver airbag module.
Refer to DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING .
Remove the steering wheel.
Refer to STEERING COLUMN AND SHAFT .
Remove the steering wheel cover (A) after loosening the screws.

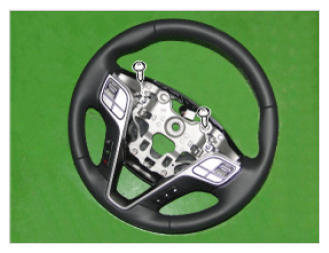

Fig 1: Identifying Driver Airbag Module And Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA

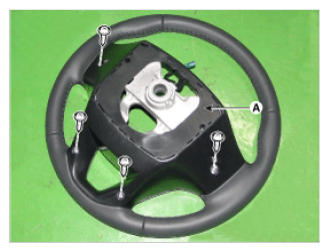

Fig 2: Identifying Steering Wheel Cover And Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the screws after disconnecting the steering on the control switch connector (A).

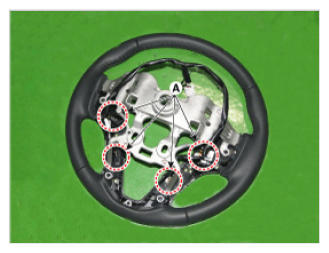

Fig 3: Identifying Steering Control Switch Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Remove the remote conttrol switches (A).

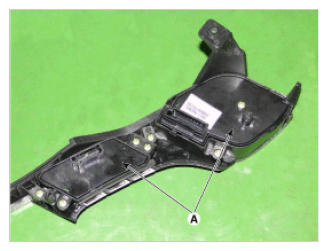

Fig 4: Identifying Remote Control Switches
Courtesy of HYUNDAI MOTOR AMERICA
