Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant with a recovery/recycling/charging station.
  2. Disconnect the negative (-) battery terminal.
  3. Remove the front bumper.

    Refer to FRONT BUMPER COVER .

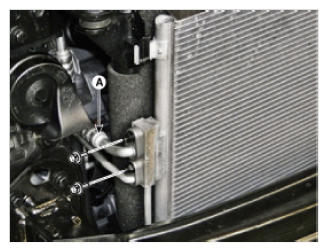

  4. Remove the 2 nuts, and then disconnect the discharge line and liquid line (A) from the condenser.
    Fig 1: Identifying Discharge And Liquid Line
    G09366680Courtesy of HYUNDAI MOTOR AMERICA

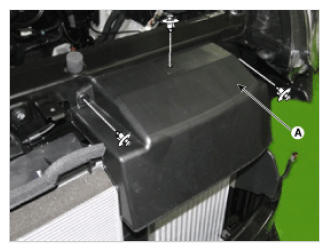

  5. Remove the intake shield (A).
    Fig 2: Identifying Intake Shield
    G09366681Courtesy of HYUNDAI MOTOR AMERICA

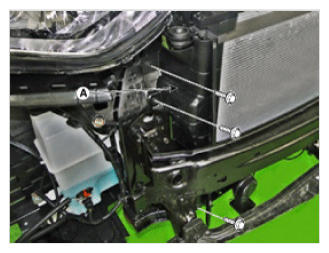

  6. Remove the side air guard (A).
    Fig 3: Identifying Side Air Guard
    G09366682Courtesy of HYUNDAI MOTOR AMERICA

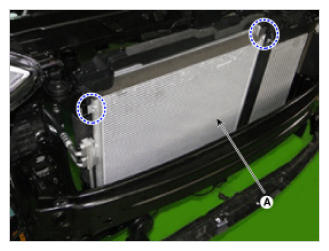

  7. Remove the condenser (A) from radiator.
    Fig 4: Identifying Condenser
    G09366683Courtesy of HYUNDAI MOTOR AMERICA
  8. Install in the reverse order of removal.
    NOTE:
    • If you're installing a new condenser, add refrigerant oil.
    • Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-134a to avoid leakage.
    • Be careful not to damage the radiator and condenser fins when installing the condenser.
    • Charge the system, and test its performance.
