Repair procedures: Replacement

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
Remove the front wheel and tire (A) from front hub.
Tightening torque:

88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)

Fig 1: Identifying Front Wheel And Tire
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: Be careful not to damage to the hub bolts when removing the front wheel and tire (A).

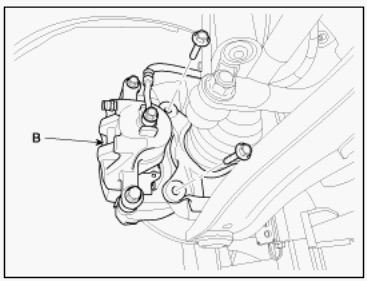

Remove the brake caliper mounting bolts, and then place the brake caliper assembly (B) aside with wire.
Tightening torque:

78.4 ~ 98.0 N.m (8.0 ~ 10.0 kgf.m, 57.8 ~ 72.3 lb-ft)

Fig 2: Identifying Brake Caliper Assembly And Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

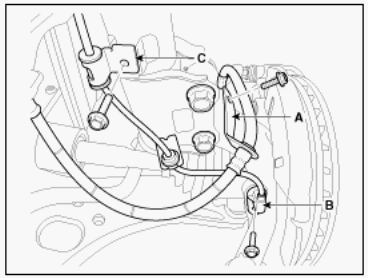

Remove the brake hose mounting bracket (A) & wheel speed sensor (B) & bracket (C).
Tightening torque (B, C):

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

Fig 3: Identifying Brake Hose Mounting Bracket, Wheel Speed Sensor And Bracket
Courtesy of HYUNDAI MOTOR AMERICA
Remove driveshaft nut (A) from the front hub under applying the brake.
Tightening torque:

196.1 ~ 274.5 N.m (20.0 ~ 28.0 kgf.m, 144.6 ~ 202.5 lb-ft)

Fig 4: Identifying Front Hub Driveshaft Nut
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- The driveshaft lock nut should be replaced with new ones.
- After installation driveshaft lock nut, stake the lock nut using a chisel and hammer as shown in the illustration below.
Fig 5: Staking Lock Nut
Courtesy of HYUNDAI MOTOR AMERICA

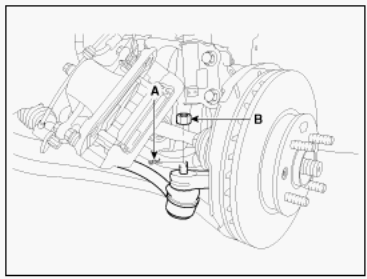

Remove the tie rod end ball joint from the knuckle.
1. Remove the split pin (A).
2. Remove the castle nut (B).
  Tightening torque:

  23.5 ~ 33.3 N.m (2.4 ~ 3.4 kgf.m, 19.4 ~ 24.5 lb-ft)

  Fig 6: Identifying Castle Nut And Split Pin
  Courtesy of HYUNDAI MOTOR AMERICA

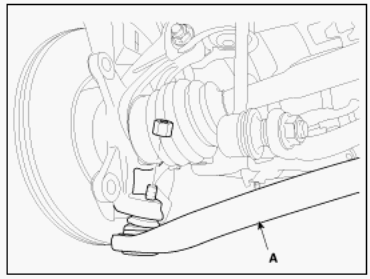

Remove the lower arm (A) from the knuckle.
Tightening torque:

196.1 ~ 274.5 N.m (6.0 ~ 7.2 kgf.m, 144.6 ~ 202.5 lb-ft)

Fig 7: Identifying Knuckle Lower Arm
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the driveshaft (A) from the front hub assembly.

Fig 8: Identifying Front Hub Assembly Driveshaft
Courtesy of HYUNDAI MOTOR AMERICA

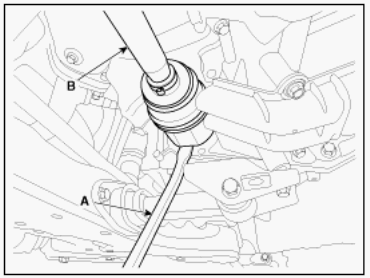

Insert a pry bar (A) between the transaxle case and joint case, and separate the drive shaft (B) from the transaxle case.

Fig 9: Identifying Pry Bar And Drive Shaft
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
CAUTION:
- Use a pry bar (A) being careful not to damage the transaxle and joint.
- Do not insert the pry bar (A) too deep, as this may cause damage to the oil seal.
- Do not pull the driveshaft by excessive force as it may cause components inside the joint kit to dislodge resulting in a torn boot or a damaged bearing.
- Plug the hole of the transaxle case with the oil seal cap to prevent contamination.
- Support the driveshaft properly.
- Replace the retainer ring whenever the driveshaft is removed from the transaxle case.
