Repair Procedures: Replacement

  1. Remove the front wheel & tire.

    Tightening torque:

    88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

    Fig 1: Identifying Front Wheel And Tire
    G09150766Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: Be careful not to damage to the hub bolts when removing the front wheel & tire.
  2. Disconnect the stabilizer link (A) with the front strut assembly after loosening the nut.

    Tightening torque:

    98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.8 lb-ft)

    Fig 2: Identifying Stabilizer Link
    G09150767Courtesy of HYUNDAI MOTOR AMERICA
  3. Loosen the nut and then remove the tie-rod end (A) with the front axle.

    Tightening torque:

    23.5 ~ 33.3 N.m (2.4 ~ 3.4 kgf.m, 19.4 ~ 24.6 lb-ft)

    Fig 3: Identifying Tie-Rod End With Front Axle
    G09150768Courtesy of HYUNDAI MOTOR AMERICA
  4. Loosen the nut and then remove the lower arm (A).

    Tightening torque:

    78.5 ~ 88.3 N.m (8.0 ~ 9.0 kgf.m, 57.9 ~ 65.1 lb-ft)

    Fig 4: Identifying Lower Arm
    G09150769Courtesy of HYUNDAI MOTOR AMERICA
  5. Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.

    Tightening torque:

    32.4 ~ 37.3N.m (3.3 ~ 3.8 kgf.m, 23.9 ~ 27.5 lb-ft)

    Fig 5: Identifying Universal Joint Assembly Bolt
    G09150770Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Lock the steering wheel in the straight ahead position to prevent the damage of the clock spring inner cable when you handle the steering wheel.
    • Must be replaced with new bolts when assembling. (SEAL-LOCK has been processed)

      SEAL-LOCK Specifications: MS721-39 "TYPE-D" Product: ND industries 1193S

  6. Remove the rubber hanger (A).
    Fig 6: Identifying Rubber Hanger
    G09150771Courtesy of HYUNDAI MOTOR AMERICA
  7. Loosen the roll rod (A) mounting bolts and nuts.

    Tightening torque:

    53.9 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 39.8 ~ 47.0 lb-ft)

    Fig 7: Identifying Roll Rod
    G09150772Courtesy of HYUNDAI MOTOR AMERICA
  8. Loosen the bolts & nuts and then remove the front sub frame (A).

    Tightening torque:

    Sub frame mounting bolt & nut

    156.9 ~ 176.5 N.m (16.0 ~ 18.0 kgf.m, 115.7 ~ 130.2 lb-ft)

    Sub frame stay mounting bolt

    44.1 ~ 53.9 N.m (4.5 ~ 5.5 kgf.m, 32.5 ~ 39.8 lb-ft)

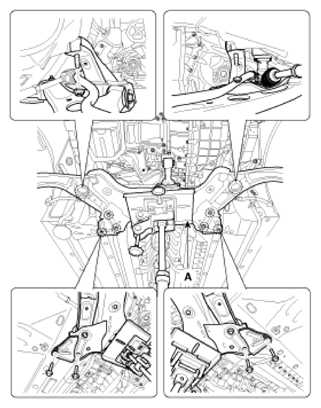

    Fig 8: Identifying Front Sub Frame
    G09150773Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the protector (A) and steering gearbox (B) from the front sub frame by loosening the mounting bolts.

    Tightening torque:

    58.8 ~ 78.8 N.m (6.0 ~ 8.0 kgf.m, 43.4 ~ 57.9 lb-ft)

    [LHD]

    Fig 9: Identifying Protector (LHD)
    G09150774Courtesy of HYUNDAI MOTOR AMERICA

    [LHD]

    Fig 10: Identifying Steering Gearbox (LHD)
    G09150775Courtesy of HYUNDAI MOTOR AMERICA

    [RHD]

    Fig 11: Identifying Protector (LHD)
    G09150776Courtesy of HYUNDAI MOTOR AMERICA

    [RHD]

    Fig 12: Identifying Steering Gearbox (RHD)
    G09150777Courtesy of HYUNDAI MOTOR AMERICA
  10. Installation is the reverse of the removal.
  11. Check the wheel alignment.

    (Refer to TIRES/WHEELS/WHEEL ALIGNMENT )
