Repair Procedures: Inspection
WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

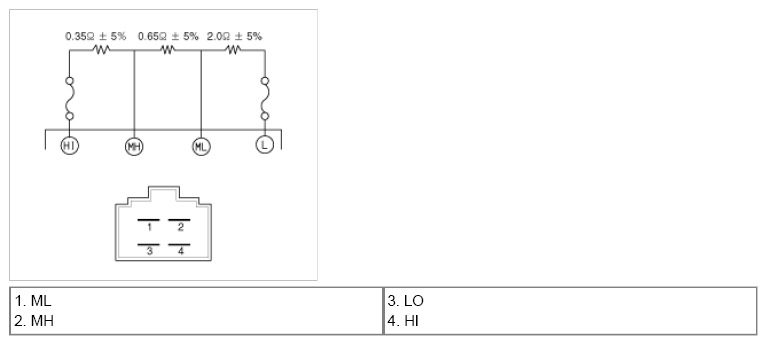

- Measure terminal-to-terminal resistance of the blower resistor.
- measured resistance is not within specification, the blower resistor must be replaced. (After removing the resistor)
Courtesy of HYUNDAI MOTOR AMERICA
