Repair procedures: Removal
WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the steering wheel.
(Refer to the "STEERING COLUMN AND SHAFT ")
- Remove the steering column upper and lower shrouds.
- Remove the clock spring.
- Disconnect the lighting switch connector and wiper & washer switch connector.

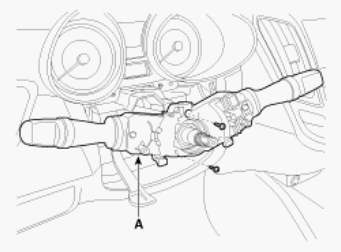

- Remove the multifunction switch assembly (A) with loosening 2 screws.
- If it is necessary to remove. The wiper & washer switch only, release the lock of wiper switch using tool without removing the steering wheel and the clock spring.
