Lighting Switch

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

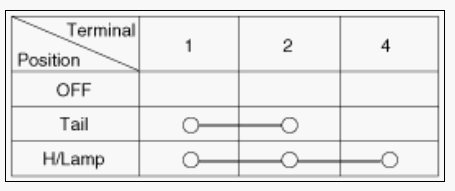

Fig 1: Lighting Switch Continuity Reference Chart
G08811425Courtesy of HYUNDAI MOTOR AMERICA
