Lighting Switch Inspection

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

With the multifunction switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the multi-function switch.

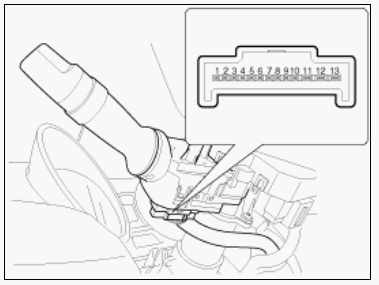

Fig 1: Identifying Lighting Switch Connector Terminals
G08811423Courtesy of HYUNDAI MOTOR AMERICA
