Repair procedures: Removal

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

Remove the floor console assembly.
(Refer to the "CONSOLE ")

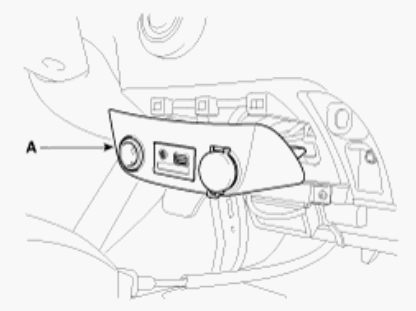

Remove the multimedia jack assembly (A).

Fig 1: Identifying Multimedia Jack Assembly
Courtesy of HYUN

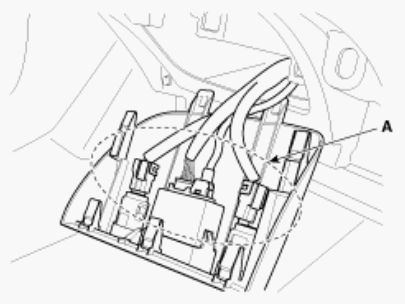

Disconnect the multimedia jack connector (A).

Fig 2: Identifying Multimedia Jack Connector
Courtesy of HYUN

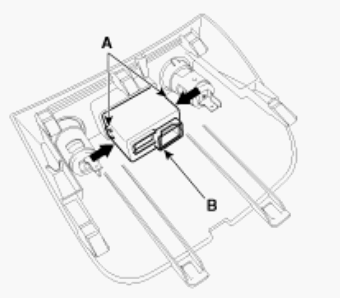

Remove the multimedia jack (B) after releasing the fixed hooks (A).

Fig 3: Pushing Multimedia Jack Fixed Hooks
