Repair procedures: Replacement

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Disconnect the evaporator temperature sensor connector.
  3. Remove the evaporator temperature sensor (A), by pulling it after rotating 90° in a counterclockwise direction.

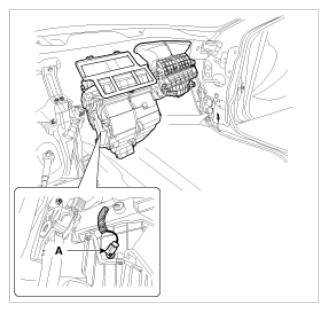

    Fig 1: Identifying Evaporator Temperature Sensor
    G08811970Courtesy of HYUNDAI MOTOR AMERICA
  4. Installation is the reverse order of removal.
