Repair procedures: Replacement

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Recover the refrigerant with a recovery/charging station.
  3. Remove the A/C pressure transducer (B) after disconnecting the connector (A).

    Tightening torque:

    10~12 N.m (1.02~1.22 kgf.m, 7.4~8.8 lb-ft)

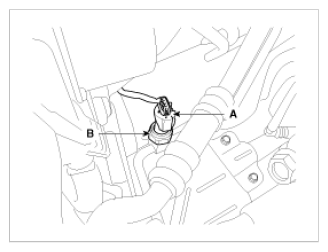

    Fig 1: Identifying A/C Pressure Transducer And Connector
    G08811968Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: Take care that liquid & suction pipe are not bent.
  4. Installation is the reverse order of removal.
