Repair procedures: Removal: Notes

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the front bumper.
(Refer to the "FRONT BUMPER ")
Loosening the head lamp mounting bolts (3EA) and disconnect the head lamp connector (B).
Then, remove the head lamp assembly (A).
NOTE:
- Take care not to scratch the head lamp lens or fender.

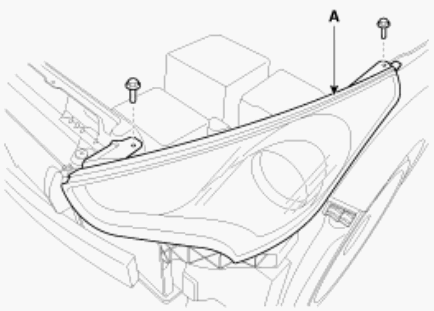

Fig 1: Identifying Head Lamp Assembly
Courtesy of HYUNDAI MOTOR AMERICA

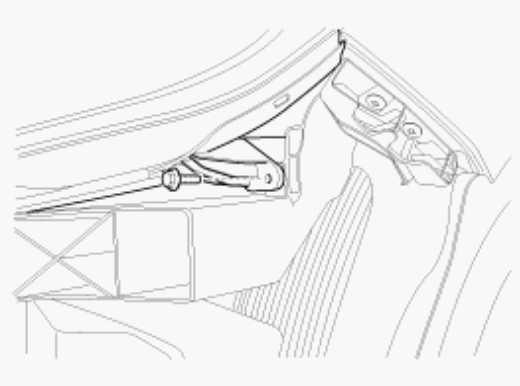

Fig 2: Identifying Head Lamp Assembly Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Take care that holding clip (A) is not to be damaged.

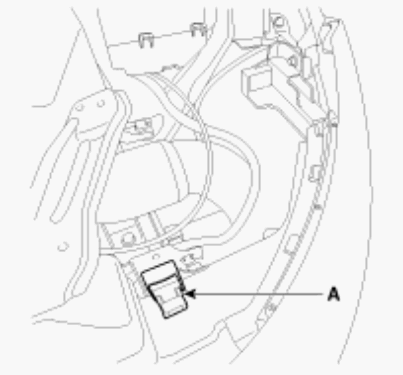

Fig 3: Identifying Holding Clip
Courtesy of HYUNDAI MOTOR AMERICA
Remove the dust caps from the head lamp assembly after turning in the counter clock-wise direction.

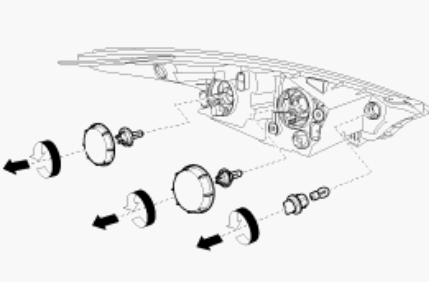

Fig 4: Removing Head Lamp Assembly Dust Caps
