Control Circuit Inspection

Check Open or Short in FPR circuit
1. IG KEY "OFF".
2. Disconnect FPR connector.
3. IG KEY "ON" & ENG "OFF".
4. Measure the voltage between FPR open, FPR close terminal of FPR harness connector and chassis ground.
  Specification:

  FPR open Terminal: Approx. 0~0.6V

  FPR close Terminal: Approx. 0.6V

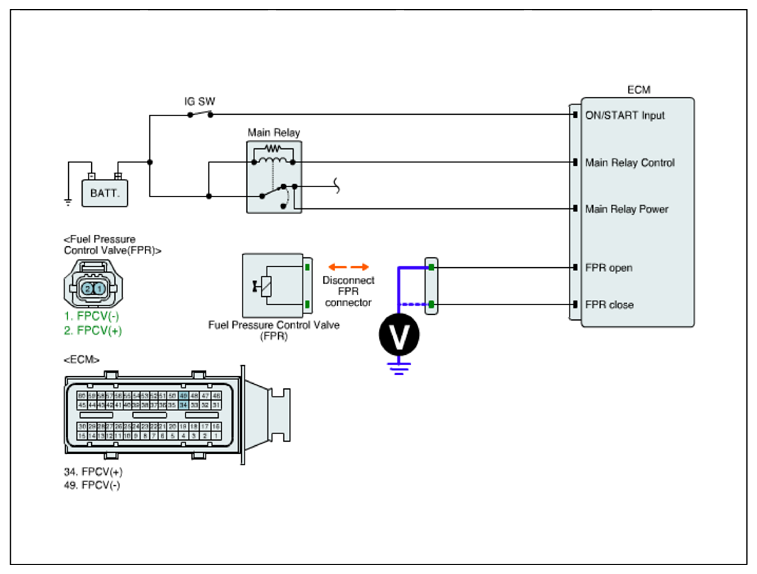

  Fig 1: Measuring Voltage Between FPR Open, FPR Close Terminal Of FPR Harness Connector And Chassis Ground
  Courtesy of HYUNDAI MOTOR AMERICA
5. Is the measured voltage within specification?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Check for Open or Short in FPR circuit. Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
