Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Remove the rear seat.

    (Refer to "REAR SEAT ASSEMBLY REPLACEMENT ")

  3. Remove the fuel pump service cover (A).

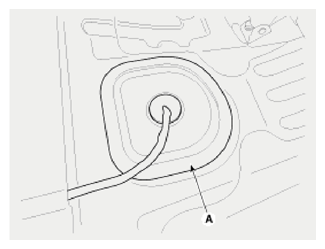

    Fig 1: Fuel Pump Service Cover
    G09150415Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the fuel pump connector (A).
  5. Disconnect the fuel feed tube quick connector (B) and the vapor tube quick-connector (D).
  6. Disconnect the fuel pressure sensor connector (C).
  7. Remove the plate cover (E) after removing the bolts.
    Fig 2: Fuel Pump, Fuel Tank Pressure Sensor, Fuel Feed Tube Quick Connectors And Plate Cover
    G09150416Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the fuel pump from the fuel tank.
    Fig 3: Fuel Pump Assembly
    G09150417Courtesy of HYUNDAI MOTOR AMERICA
