Fuel sender

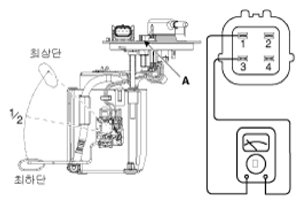

- Using an ohmmeter, measure the resistance between terminals 1 and 3 of sender connector (A) at each float level.
Pin No. Description 1 Fuel sender signal 2 Fuel pump (+) 3 Fuel sender ground 4 Fuel pump (-) - Also check that the resistance changes smoothly when the float is moved from "E" to "F".
Position Resistance (Ω) Capacity (l ) E 197 ~ 203 3.0 1/2 64.2 ~ 68.2 24.6 F 6 ~ 8 49
