Fuel pump

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the fuel pump assembly.
  3. Check motor operation by fuel pump connector (A) connecting power (No. 2) and ground (No. 4)

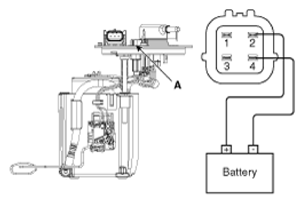

    Fig 1: Checking Motor Operation By Connecting Power (No. 2) And Ground (No. 4)
    G09150418Courtesy of HYUNDAI MOTOR AMERICA
    Pin No. Description
    1 Fuel sender signal
    2 Fuel pump (+)
    3 Fuel sender ground
    4 Fuel pump (-)
