Repair procedures: Removal

  1. Remove the rear-LH wheel, tire, and the inner wheel house.
  2. Disconnect the fuel filler hose (A), the leveling hose (B) and the ventilation hose (C).

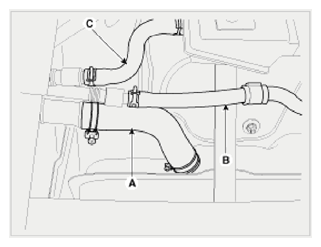

    Fig 1: Fuel Filler Hose, Leveling Hose & Ventilation Hose
    G09150426Courtesy of HYUNDAI MOTOR AMERICA
  3. Open the fuel filler door and unfasten the filler-neck assembly mounting screw (A).
    Fig 2: Filler-Neck Assembly Mounting Screws
    G09150428Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the filler-neck assembly from the vehicle after removing the bracket mounting bolts (A).

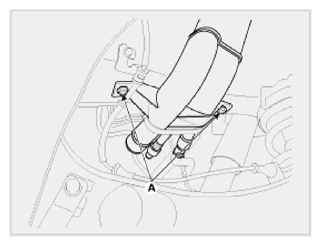

    Fig 3: Bracket Mounting Bolts
    G09150427Courtesy of HYUNDAI MOTOR AMERICA
