Home >> Hyundai >> 2013 >> Veloster Turbo, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System - Turbo >> Accelerator Pedal >> Repair procedures >> Removal

Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the accelerator position sensor connector (A).

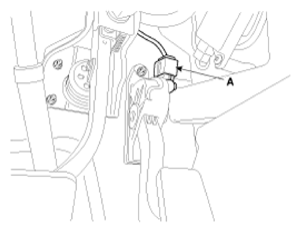

    Fig 1: Accelerator Position Sensor Connector
    G09150429Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the installation bolt (B), the nuts (C) and then remove the accelerator pedal module.

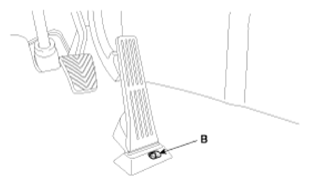

    Fig 2: Accelerator Pedal Module Installation Bolt
    G09150430Courtesy of HYUNDAI MOTOR AMERICA
    Fig 3: Mounting Nuts
    G09150431Courtesy of HYUNDAI MOTOR AMERICA
