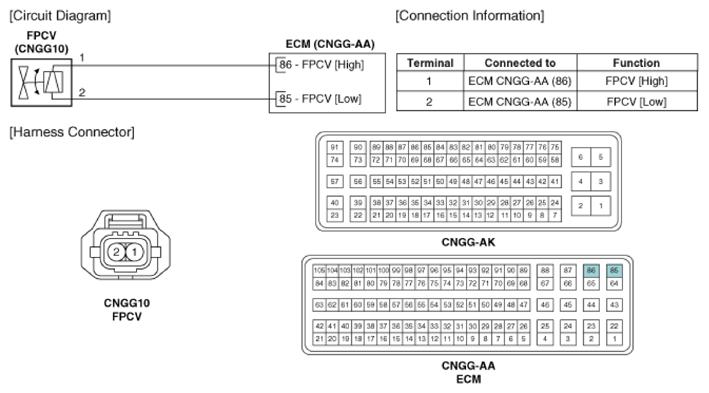

Home >> Hyundai >> 2013 >> Veloster Turbo, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - Turbo >> Fuel Pressure Control Valve >> Schematic Diagrams >> Circuit Diagram >> (A/T)
