Repair Procedures: Installation

Install the parking brake cable.

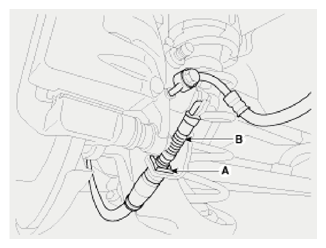

Install the parking brake cable (B), and then install the clip (A).

Fig 1: Parking Brake Cable And Clip
Courtesy of HYUNDAI MOTOR AMERICA
Install the rear tire and wheel.
Install the parking brake lever assembly.

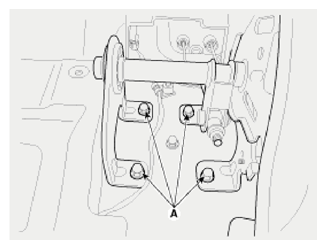

Fig 2: Parking Brake Lever Assembly Mounting Nut
Courtesy of HYUNDAI MOTOR AMERICA
Install the parking brake cable.

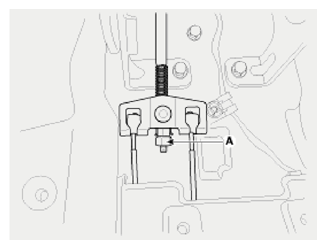

Fig 3: Parking Brake Cable Adjusting Nut
Courtesy of HYUNDAI MOTOR AMERICA

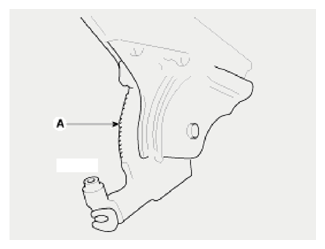

Apply a coating of the specified grease to each sliding parts (A) of the ratchet plate or the ratchet pawl.
Specified grease:

Multi purpose grease SAE J310, NLGI No. 2

Fig 4: Identifying Grease Application Area
Courtesy of HYUNDAI MOTOR AMERICA

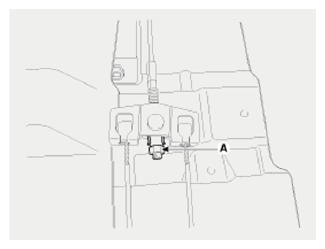

Install the parking brake cable adjuster, then adjust the parking brake lever stroke by turning adjusting nut (A).
Parking brake lever stroke:

6 ~ 8 clicks (Pull the lever with 196 N (20 kgf, 44 lbf))

NOTE: After repairing the parking brake shoe, adjust the brake shoe clearance, and then adjust the parking brake lever stroke. (Refer to REAR DISC BRAKE .

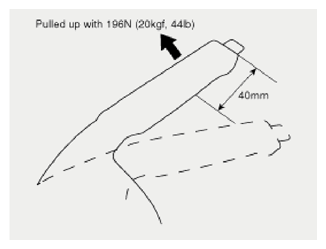

Fig 5: Adjusting Parking Brake Lever Stroke
Courtesy of HYUNDAI MOTOR AMERICA

Fig 6: Parking Brake Lever Nut
Courtesy of HYUNDAI MOTOR AMERICA
Release the parking brake lever fully, and check that parking brakes do not drag when the rear wheels are turned. Readjust if necessary.
Make sure that the parking brakes are fully applied when the parking brake lever is pulled up fully.
Reconnect the connector (A) of parking brake switch.

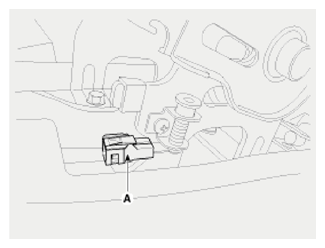

Fig 7: Parking Brake Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Inspect the continuity of parking brake switch.

When the brake lever is pulled: continuity

When the brake lever is released: no continuity
Install the floor console.
(Refer to CONSOLE .
