Rear Body
>>
Body Repair
Body Repair

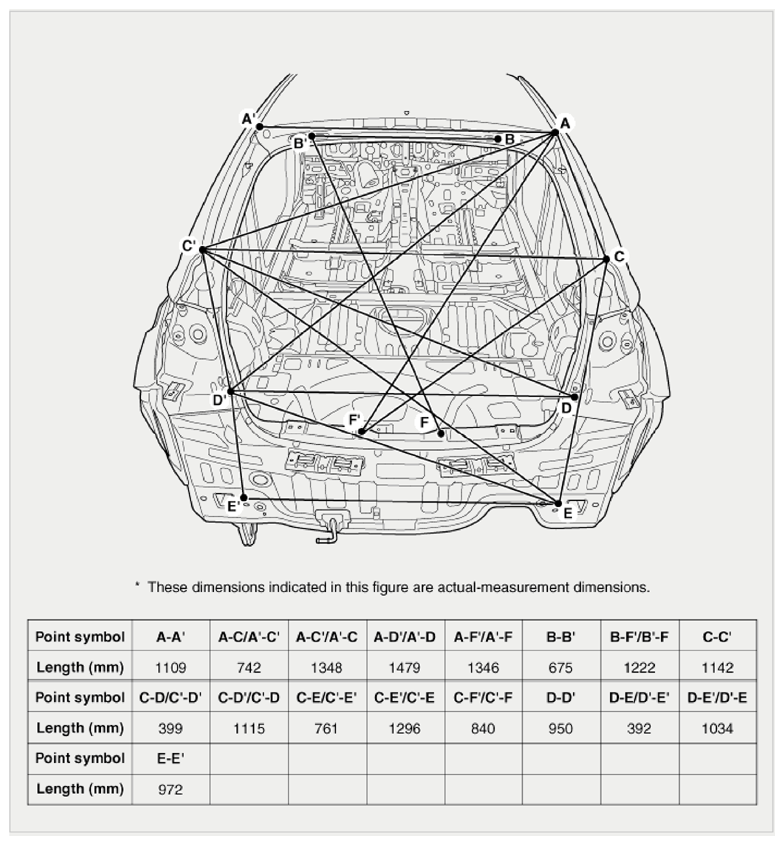

Fig 1: Rear Body Measurement Dimensions
Courtesy of HYUNDAI MOTOR AMERICA

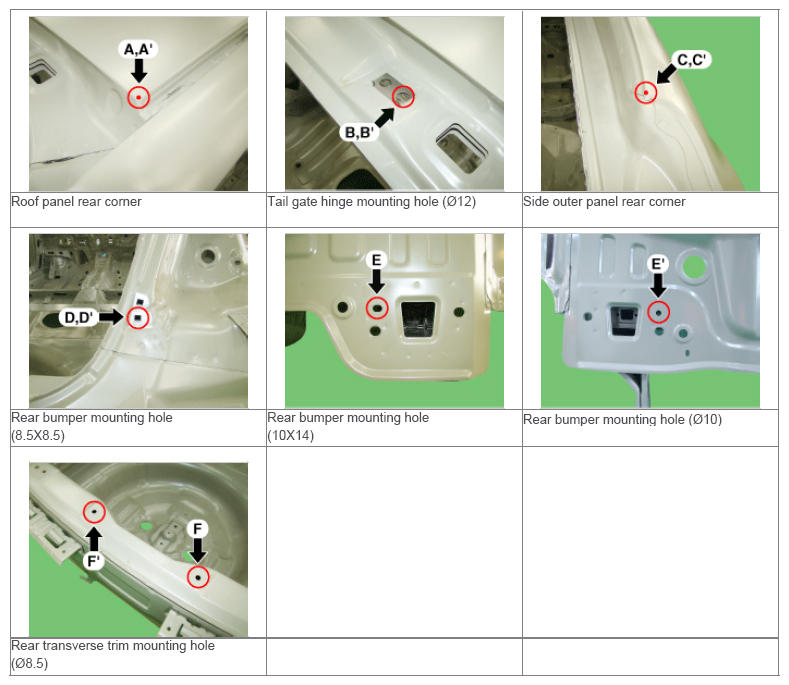

Fig 2: Locating Rear Body Measurement Points
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
