Interior D

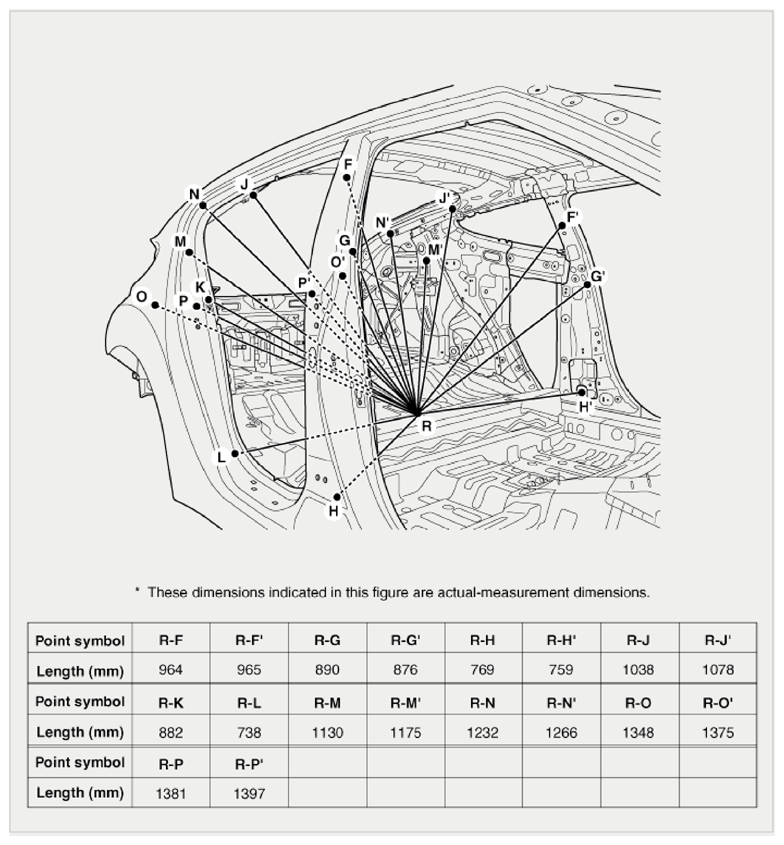

Fig 1: Interior D Measurement Dimensions
G09133969Courtesy of HYUNDAI MOTOR AMERICA

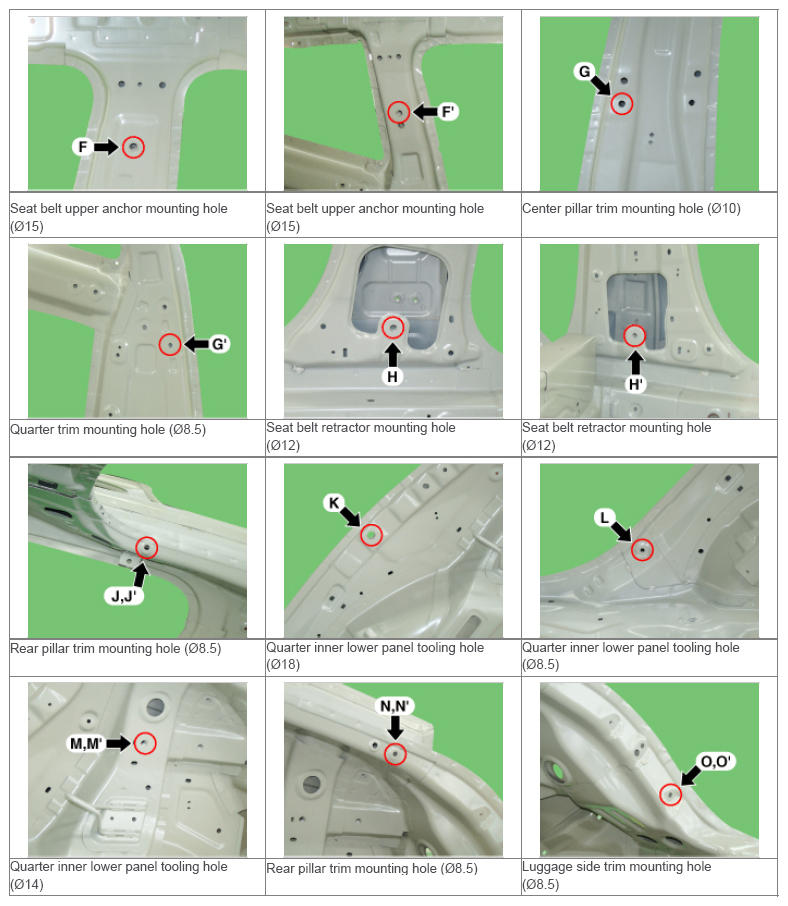

Fig 2: Locating Interior D Measurement Points (1 Of 2)
G09133970Courtesy of HYUNDAI MOTOR AMERICA

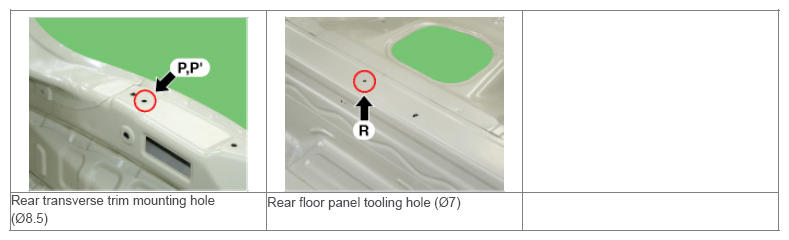

Fig 3: Locating Interior D Measurement Points (2 Of 2)
G09133971Courtesy of HYUNDAI MOTOR AMERICA
