Interior C

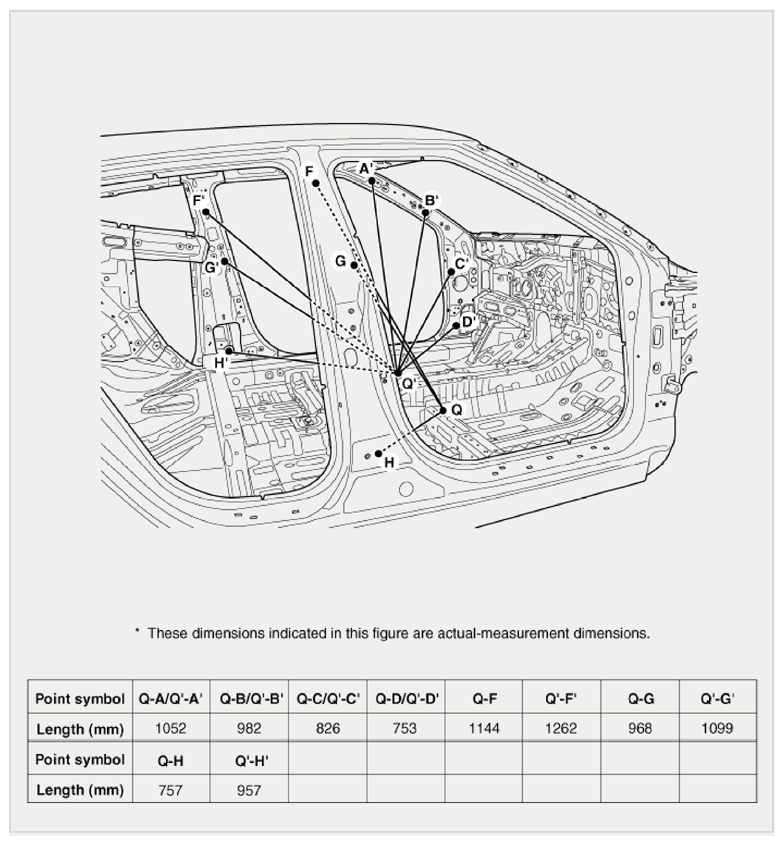

Fig 1: Interior C Measurement Dimensions

G09133967

Courtesy of HYUNDAI MOTOR AMERICA

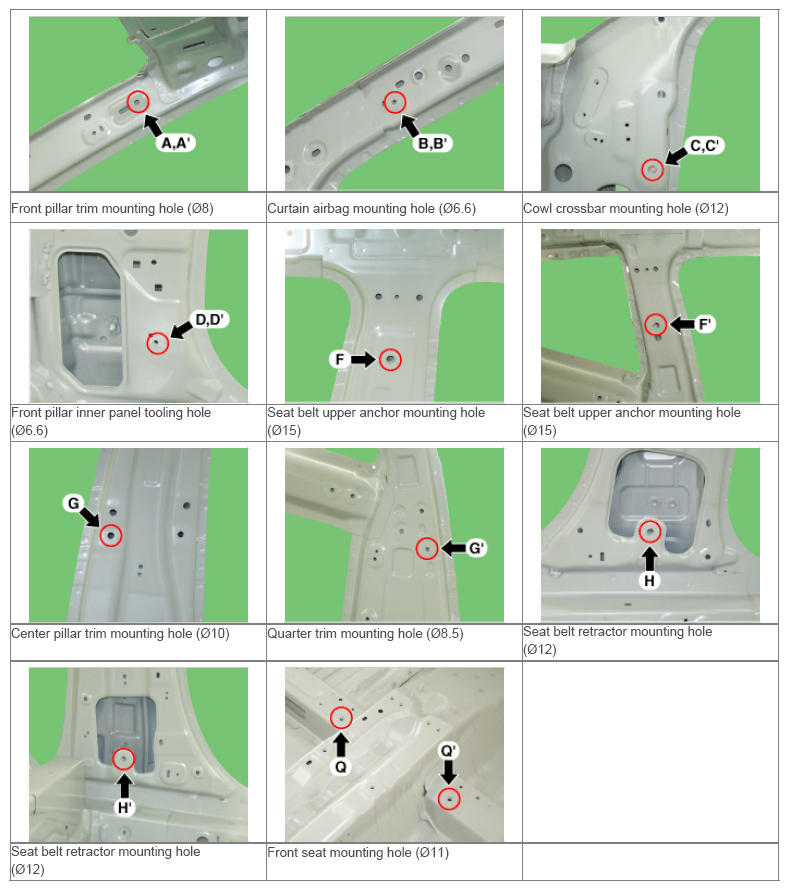

Fig 2: Locating Interior C Measurement Points

G09133968

Courtesy of HYUNDAI MOTOR AMERICA
