Interior A

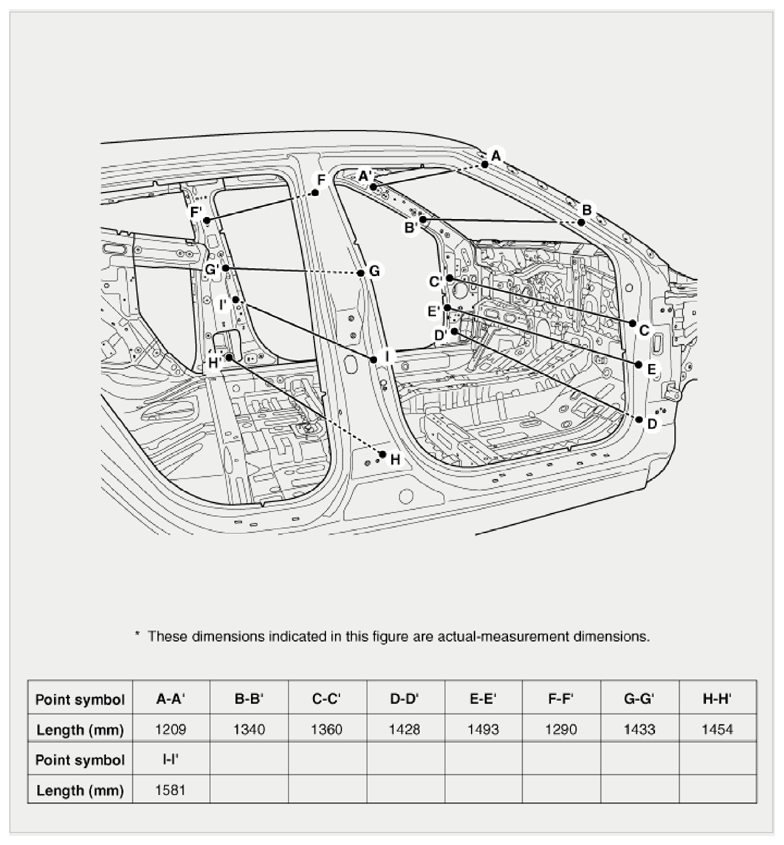

Fig 1: Interior A Measurement Dimensions
G09133961Courtesy of HYUNDAI MOTOR AMERICA

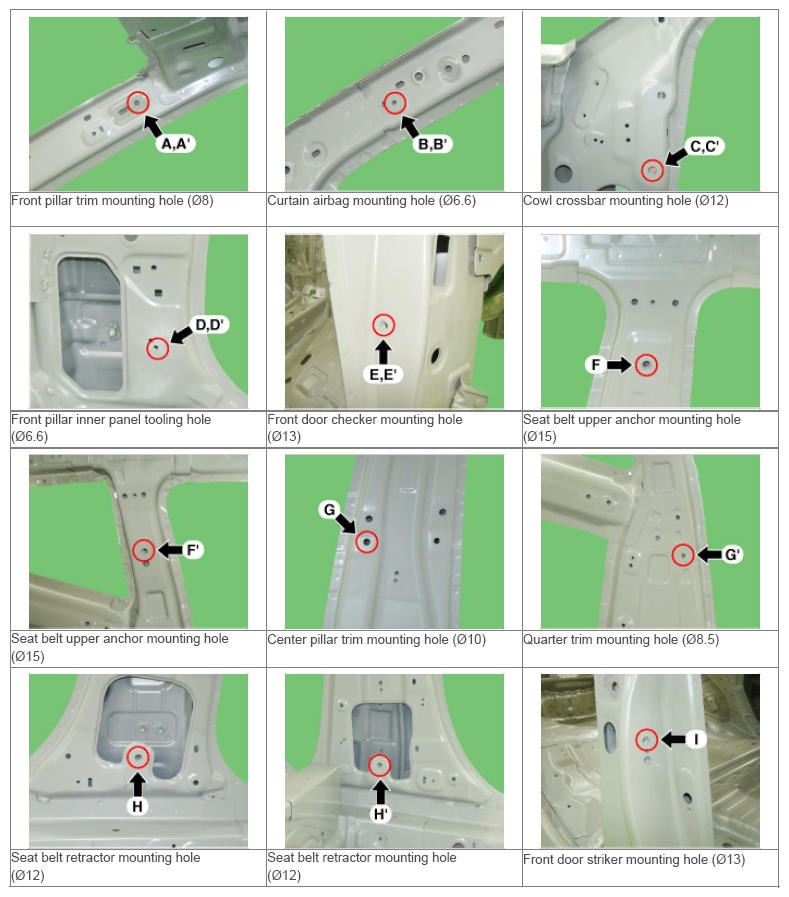

Fig 2: Locating Interior A Measurement Points (1 Of 2)
G09133962Courtesy of HYUNDAI MOTOR AMERICA
Fig 3: Locating Interior A Measurement Points (2 Of 2)
G09133963Courtesy of HYUNDAI MOTOR AMERICA
