Front Body A

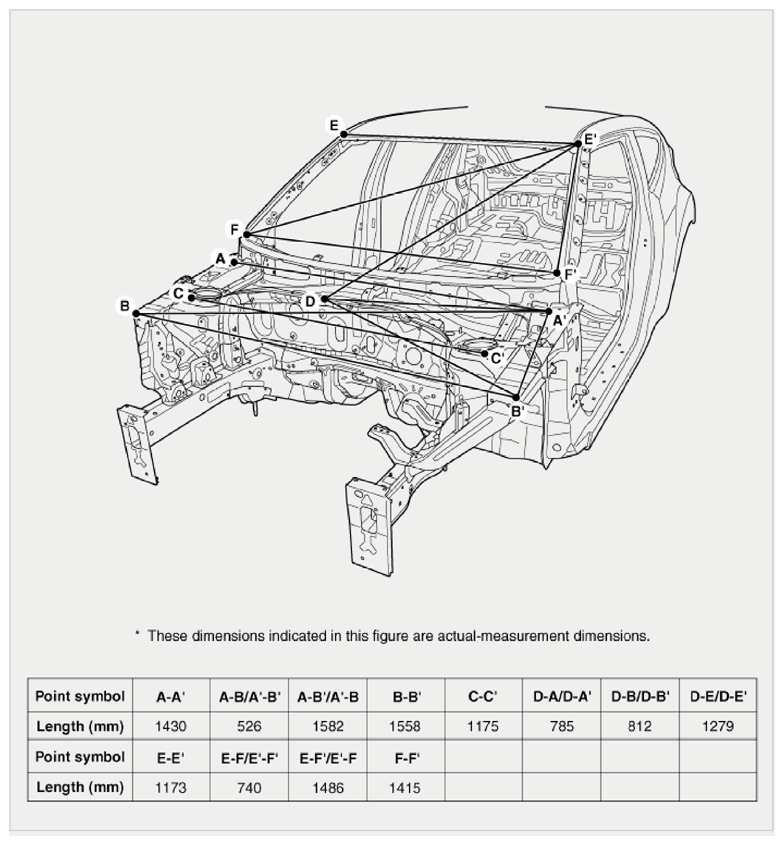

Fig 1: Front Body A Measurement Dimensions

G09133947

Courtesy of HYUNDAI MOTOR AMERICA

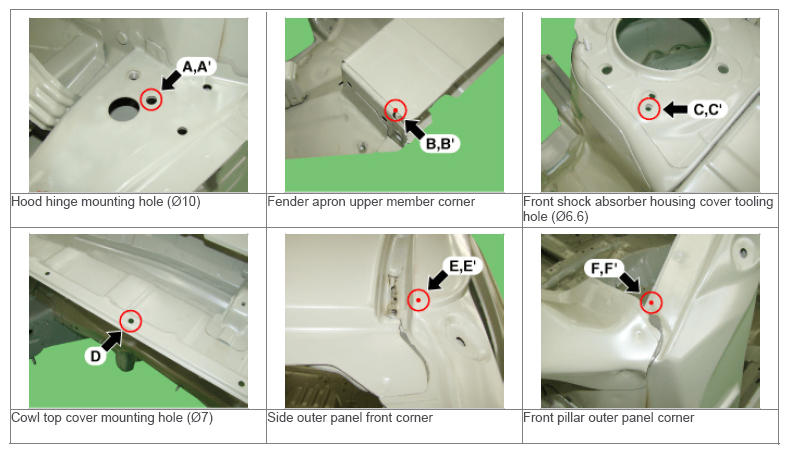

Fig 2: Locating Front Body A Measurement Points

G09133948

Courtesy of HYUNDAI MOTOR AMERICA
