Repair Procedures: Inspection

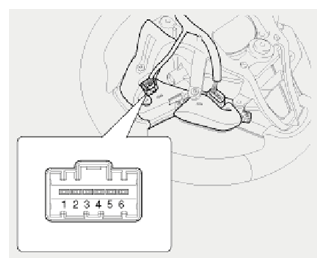

- Check the hands free remote control switch for resistance between terminals in each switch position.
Courtesy of HYUNDAI MOTOR AMERICA
| Switch |
Connector terminal |
Resistance (±5%) |
| Voice |
3 - 4 |
10.71 kΩ |
| End of call |
3 - 4 |
18.91 kΩ |
| Send |
3 - 4 |
40.91 kΩ |
